| Brand Name: | Dechang |
| Model Number: | DC-CR0028 |
| MOQ: | 1 box or 1 coil |
| Price: | Factory Price |
| Packaging Details: | 2PT---100M/Box 3PT---70M/Box 4PT---50M/Box |
Product Name :
2PT 3PT 4PT Steel Blade Die Cutting Rule for Die Board
Specifications
Our die-cutting steel ruler has the advantages of good bending effect, stable hardness, high accuracy and sufficient length. According to the needs of customers, we will provide customers with different types of die-cutting steel rulers. There are four common standard cutting edges, namely, center bevel, long center bevel and long side bevel. Our cutting blades vary in height from 10mm to 30mm. In addition to cutting steel ruler, we also produce indentation steel ruler, punching steel ruler, cutting steel ruler, zipper steel ruler, punch and ejection rubber.
Specification of Creasing Rule
Introduction of Round Profile
In the practice of die cut, a good round profile can avoide any tendency to the board cracking whcih is caused by 'shoulders' in the creasing rule with a flatter profile.
Specification of Creasing Rule
| Name | Thickness (mm) | Height (mm) | Hardness | Edge angle |
| Creasing rule |
0.45/0.53mm 1.5pt |
20mm to 23.30m | 40-45HRC | Double round or 1 side round 1 side flat |
|
0.71mm 2pt |
20mm to 23.30m | |||
|
1.07mm 3pt |
20mm to 23.30m | |||
|
1.42mm 4pt |
20mm to 23.30m |
3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching
| Name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°52° |
| 0.53 | 23~23.80/1000 | 125 | |||
| 0.71 | 23~23.80/1000 | 100 | |||
| 1.05 | 23~23.80/1000 | 70 | |||
| 1.42 | 23~23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22~23.8/1000 | 100 | |||
| 1.05 | 22~23.8/1000 | 70 | |||
| 1.42 | 22~23.8/1000 | 50 | |||
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |
| Perforating rule | 0.71 | 23~23.80/10001*1~10*10 | 100 | 38HRC-54HRC | 42°52° |
| 1.05 | 23~23.80/10001*1~10*10 | 70 |
4. Application Samples
5. Bended Shapes samples
6. Stuitable Machines & Related Product
Auto Steel Rule Bending Machine & Manual Bending Machines For Die Making
Competitive Advantage:
1. Since 2013 , we have been specialized in Diecutting industry
2. We can provide customers with complete set of flat dieboard making equipment like laser cutter, manual bender, jigsaw machine, rotary dieboard, Rubber, etc.
|
cutting rule
|
2PT/3pt*22-60mm CFDB/CF
|
|
|
Blade hardness
|
33-35HRC
|
|
|
Blade/blade hardness
|
600HV ( 56 HRC)
|
|
|
Best bending degree (3PT shaved)
|
a=40°R~ 0.5mm
|
|
|
specification
|
3pt*23.8mm DB
|
|
|
Knife processing
|
Pull mouth
|
|
|
Blade angle
|
42°/48°/52°/
|
|
|
tooth rule
|
2pt*23.8 2*1
|
|
|
Blade hardness
|
35°
|
|
|
Blade/blade hardness
|
35°
|
|
|
specification
|
2pt*23.8 2*1
|
|
|
Knife processing
|
Pull mouth
|
|
|
Tooth profile
|
customizable
|
|
|
creasing rule
|
2PT/3PT
|
|
|
hardness
|
35-40 hrc
|
|
|
height
|
22.00-23.80
|
|
Application :
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
Types available :
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

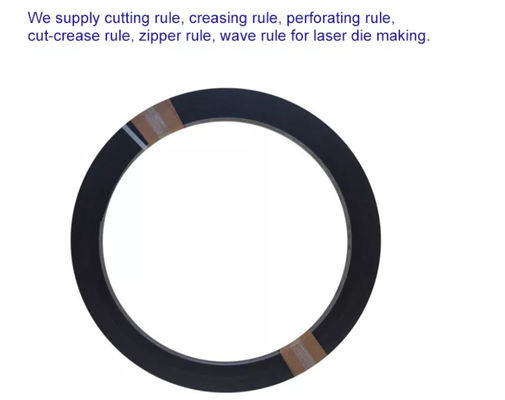

Product Picture :
|
|
| Brand Name: | Dechang |
| Model Number: | DC-CR0028 |
| MOQ: | 1 box or 1 coil |
| Price: | Factory Price |
| Packaging Details: | 2PT---100M/Box 3PT---70M/Box 4PT---50M/Box |
Product Name :
2PT 3PT 4PT Steel Blade Die Cutting Rule for Die Board
Specifications
Our die-cutting steel ruler has the advantages of good bending effect, stable hardness, high accuracy and sufficient length. According to the needs of customers, we will provide customers with different types of die-cutting steel rulers. There are four common standard cutting edges, namely, center bevel, long center bevel and long side bevel. Our cutting blades vary in height from 10mm to 30mm. In addition to cutting steel ruler, we also produce indentation steel ruler, punching steel ruler, cutting steel ruler, zipper steel ruler, punch and ejection rubber.
Specification of Creasing Rule
Introduction of Round Profile
In the practice of die cut, a good round profile can avoide any tendency to the board cracking whcih is caused by 'shoulders' in the creasing rule with a flatter profile.
Specification of Creasing Rule
| Name | Thickness (mm) | Height (mm) | Hardness | Edge angle |
| Creasing rule |
0.45/0.53mm 1.5pt |
20mm to 23.30m | 40-45HRC | Double round or 1 side round 1 side flat |
|
0.71mm 2pt |
20mm to 23.30m | |||
|
1.07mm 3pt |
20mm to 23.30m | |||
|
1.42mm 4pt |
20mm to 23.30m |
3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching
| Name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°52° |
| 0.53 | 23~23.80/1000 | 125 | |||
| 0.71 | 23~23.80/1000 | 100 | |||
| 1.05 | 23~23.80/1000 | 70 | |||
| 1.42 | 23~23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22~23.8/1000 | 100 | |||
| 1.05 | 22~23.8/1000 | 70 | |||
| 1.42 | 22~23.8/1000 | 50 | |||
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |
| Perforating rule | 0.71 | 23~23.80/10001*1~10*10 | 100 | 38HRC-54HRC | 42°52° |
| 1.05 | 23~23.80/10001*1~10*10 | 70 |
4. Application Samples
5. Bended Shapes samples
6. Stuitable Machines & Related Product
Auto Steel Rule Bending Machine & Manual Bending Machines For Die Making
Competitive Advantage:
1. Since 2013 , we have been specialized in Diecutting industry
2. We can provide customers with complete set of flat dieboard making equipment like laser cutter, manual bender, jigsaw machine, rotary dieboard, Rubber, etc.
|
cutting rule
|
2PT/3pt*22-60mm CFDB/CF
|
|
|
Blade hardness
|
33-35HRC
|
|
|
Blade/blade hardness
|
600HV ( 56 HRC)
|
|
|
Best bending degree (3PT shaved)
|
a=40°R~ 0.5mm
|
|
|
specification
|
3pt*23.8mm DB
|
|
|
Knife processing
|
Pull mouth
|
|
|
Blade angle
|
42°/48°/52°/
|
|
|
tooth rule
|
2pt*23.8 2*1
|
|
|
Blade hardness
|
35°
|
|
|
Blade/blade hardness
|
35°
|
|
|
specification
|
2pt*23.8 2*1
|
|
|
Knife processing
|
Pull mouth
|
|
|
Tooth profile
|
customizable
|
|
|
creasing rule
|
2PT/3PT
|
|
|
hardness
|
35-40 hrc
|
|
|
height
|
22.00-23.80
|
|
Application :
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
Types available :
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

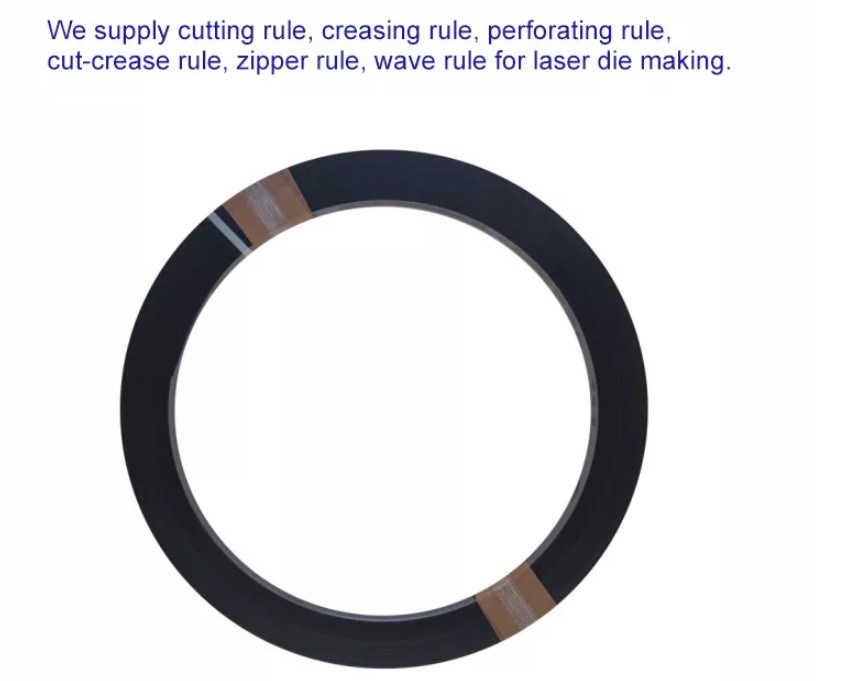

Product Picture :
