Product Name :  23.80*1.05 3PT 4PT Die Cutting Rules Flat Die Making Steel Cutting Rule

Specifications

The advantage of our Die Cutting Steel Rule is good bending effects, stable hardness, accurate height and adequate length. According to customers' needs, we will provide customers with different kinds of Die Cutting Steel Rule . Commonly, there are four types of standard edge which are Centre Bevel, Long Centre Bevel and Long Side Bevel. The hight of our cutting blade ranges from 10mm to 30mm. Except cutting rule, we also prodce creasing rule, perforating rule , cut-creasing rule, zipper rule, punch and ejection rubber.

Specification of Creasing Rule

0.71mm 1.05mm 1.42mm Die Cutting Rule Creasing Rule With Fine Wrap-around Profile for Die Cutting

Introduction of Round Profile

In the practice of die cut, a good round profile can avoide any tendency to the board cracking whcih is caused by 'shoulders' in the creasing rule with a flatter profile.

Specification of Creasing Rule

3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching

4. Application Samples


5. Bended Shapes samples


6. Stuitable Machines & Related Product
Auto Steel Rule Bending Machine & Manual Bending Machines For Die Making

Competitive Advantage:

1. Since 2013 ,  we have been specialized in Diecutting industry

2. We can provide customers with complete set of flat dieboard making equipment like laser cutter, manual bender, jigsaw machine, rotary dieboard, Rubber, etc.

Application :

Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.

Types available :

Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

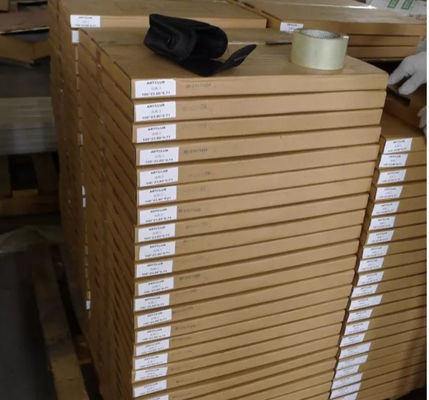

Product Picture :
