| Brand Name: | Dechang |
| Model Number: | DC-CR006 |
| MOQ: | 1 box or 1 coil |
| Price: | Factory Price |
| Packaging Details: | 2PT---100M/Box 3PT---70M/Box 4PT---100M/Box |
Product Name : Rotary Die Cutting Rules Blades True Fold For Corrugated Carton Cutting
Specifications
The advantage of our Die Cutting Steel Rule is good bending effects, stable hardness, accurate height and adequate length. According to customers' needs, we will provide customers with different kinds of Die Cutting Steel Rule . Commonly, there are four types of standard edge which are Centre Bevel, Long Centre Bevel and Long Side Bevel. The hight of our cutting blade ranges from 10mm to 30mm. Except cutting rule, we also prodce creasing rule, perforating rule , cut-creasing rule, zipper rule, punch and ejection rubber.
Specification of Creasing Rule
Introduction of Round Profile
In the practice of die cut, a good round profile can avoide any tendency to the board cracking whcih is caused by 'shoulders' in the creasing rule with a flatter profile.
Specification of Creasing Rule
| Name | Thickness (mm) | Height (mm) | Hardness | Edge angle |
| Creasing rule |
0.45/0.53mm 1.5pt |
20mm to 23.30m | 40-45HRC | Double round or 1 side round 1 side flat |
|
0.71mm 2pt |
20mm to 23.30m | |||
|
1.07mm 3pt |
20mm to 23.30m | |||
|
1.42mm 4pt |
20mm to 23.30m |
Competitive Advantage:
1. Since 2013 , we have been specialized in Diecutting industry
2. We can provide customers with complete set of flat dieboard making equipment like laser cutter, manual bender, jigsaw machine, rotary dieboard, Rubber, etc.
|
cutting rule
|
2PT/3pt*22-60mm CFDB/CF
|
|
|
Blade hardness
|
33-35HRC
|
|
|
Blade/blade hardness
|
600HV ( 56 HRC)
|
|
|
Best bending degree (3PT shaved)
|
a=40°R~ 0.5mm
|
|
|
specification
|
3pt*23.8mm DB
|
|
|
Knife processing
|
Pull mouth
|
|
|
Blade angle
|
42°/48°/52°/
|
|
|
tooth rule
|
2pt*23.8 2*1
|
|
|
Blade hardness
|
35°
|
|
|
Blade/blade hardness
|
35°
|
|
|
specification
|
2pt*23.8 2*1
|
|
|
Knife processing
|
Pull mouth
|
|
|
Tooth profile
|
customizable
|
|
|
creasing rule
|
2PT/3PT
|
|
|
hardness
|
35-40 hrc
|
|
|
height
|
22.00-23.80
|
|
Application :
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
Types available :
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

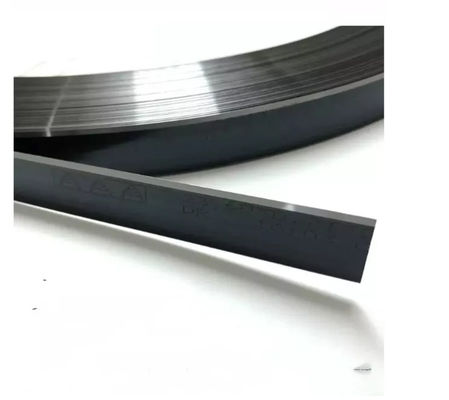

Product Picture :
|
|
