Company Culture :
Create Value For Customers , Creat Platforms For Employees , Creat Wealth For Society .
Business Philosophy :
Customer First , Quality First , Service First , Integrity first .
Sales & Support:
 |
| Place of Origin: | GuangDong , China |
| Brand Name: | Dechang |
| Certification: | Rosh |
| Model Number: | DC-RB018 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Factory Price |
| Packaging Details: | 1 Set/Export Carton or packed according to customer requirment |
| Delivery Time: | 7~10 days after Received customer deposit |
| Payment Terms: | L/C, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000 sets/month |
| Item Name: | Polyurethane Adjustable Anvil Cover For Die Making&Printing Industry Anvil Cover | Brand Name: | Dechang-07 |
|---|---|---|---|
| Size: | 332*125*10/ 332*126*10 | Color: | Brown , Pink , Green Or Other Color As Per Customer |
| Weight: | Around 10 Kgs | Material: | Imported PU |
| Application: | Roller Die-Cutting Machine For Carton Die Cutting | Shippment Time: | 10 ~12 Days After Received The Deposit |
| Feature: | Abrasion Resistant | Single Package Size: | 52*52*24cm |
| High Light: | Printing Polyurethane Spare Parts,Die Making Polyurethane Spare Parts |
||

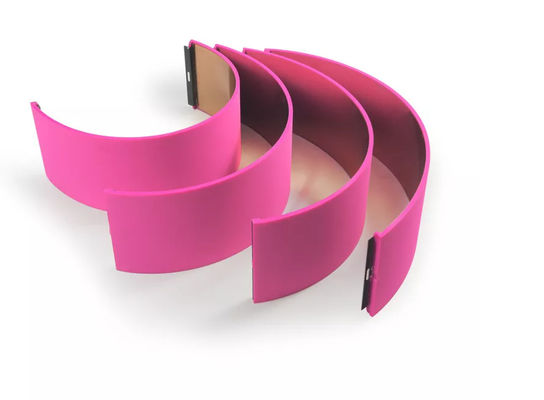

Polyurethane Adjustable Anvil Cover for Die Making&Printing Industry Anvil cover
Die Cutting Anvil Cover
1. Anvil cover
2. Die cutting anvil cover
3. Polyurethane anvil cover
Product Description :
3. The surface of each rubber pad had been repeated polished, Strive to take into account
the linearity of the whole surface of the rubber pad without losing the friction coefficient. The demanding of the process, not
only to improve the stability of cardboard transmission and ensure that each die cutting can be clean.
*Custom size,hardness and color of Polyurethane Anvil Cover are available , Welcome to Contact With Us For More Details .
Specification :
|
Name
|
Polyurethane PU Anvil Cover for Rotary Die Cut
|
|
Supply Ability
|
90 pieces per day
|
|
Minimum Order
|
13 pleces
|
|
Material
|
PU Polyurethane
|
|
Type
|
Anvil Cover
|
|
Usage
|
Used as pad for rotary die cutting
|
|
Brand Name
|
Dechang |
|
Function
|
help box makers maximize their machine time
|
|
Industry
|
packaging
|
|
Delivery lead time
|
7 working days after payment confirmed
|
|
Advantage
|
abrasion resistance,good hardness,tear resistance,high processing precision, tightened lock catch
|
|
Packing details
|
Carton box
|
Hello everyone,
Please confirm the specifications of the product you are using and then contact our customer service to place an order. The measurement method is the diameter of the roller (= circumference) and the width of the rubber pad. If you don’t understand, you can request a measurement tutorial from the customer service.
thank you all!
We sincerely reply everyone with the best quality and service! Thank you!
Usage Suggestion:
1, choose high quality imported knife, according to die cutting products choose die cutting knife tooth shape.
2, choose high-quality waste sponge, according to the die-cutting products to match the height and thickness of the indentation steel line.
3, every time after the replacement of a new rubber pad, the distance between the die-cutting cylinder and the rubber pad cylinder must be adjusted to the initial position. Gradually increase the pressure until just enough to cut the whole piece of paper. The lower the pressure, the longer the life of the rubber pad.
4. There are some places that are not easy to cut off for the newly installed rubber mat and the replacement mold, so excessive pressure should not be added. The bottom pad of the mold blade should be raised to cut off.
5, in the process of using the die cutting high-speed operation, auxiliary die cutting accessories easy to lose need to replace or supplement in time.
6, the mold can be changed according to the actual situation and die cutting product requirements, die cutting board replacement die cutting knife times can not be more than twice.
7, die cutting knife and spring pad need to be replaced in time, life in 150,000 to 300,000 times need to be replaced, and make a good record every time.
How to measure my size?
Answer: the best and most accurate method is to put the rubber mat down on the ground tile, (pay attention to must tile, warping can not) measure the net length of the rubber surface, (not steel plate surface is not the total length of the buckle, is the total length of the glue surface, horse tooth buckle measurement method is also different, consult customer service understanding. Then measure the width can be, general four-die cutting width 125mm rotary die-cutting width 250mm, some four-die cutting after a long time to use the measured width is 130m, the actual purchase of 125mm width can, because after a long time to press and cut both sides wide a few millimeters is a normal phenomenon!

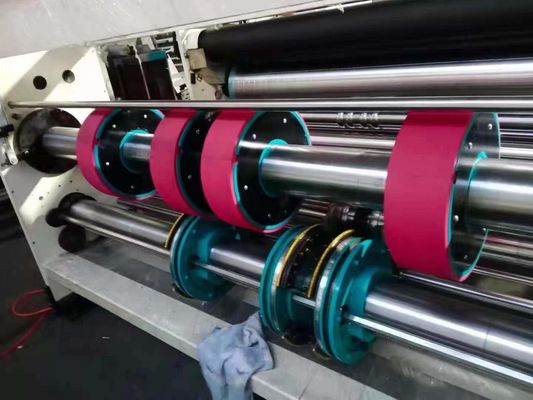

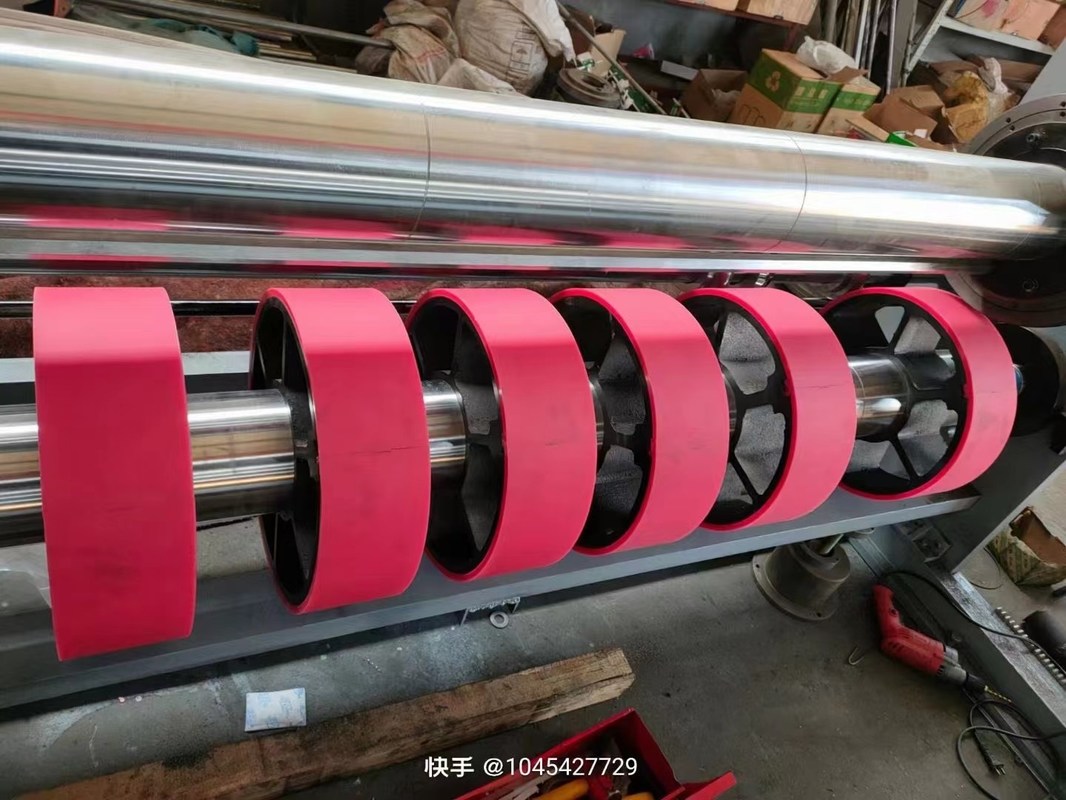

The Die cutting anvil cover used on ourself machine:
FAQ :
Q: Are you trading company or manufacturer ?
A: We are manuafcturer.
Q: Quality gurantee ?
A: One year warranty and lifelong technicial service, the seller guarantee the machines are 100% new. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy prepensely is not within the limit of Quality Guarantee.
Q: Payment terms?
A: Payment <=USD1000, 100% T/T in advance ; payment >USD1000, 30% T/T in advance, 70% balanced before delivery.
Q: Delivery time?
A: Generally it is 7-10 days if the goods are in stock, or it is 15~18 days if the goods are not in stock, it is also according to quantity.
If any other questions, please do not hesitate to contact us

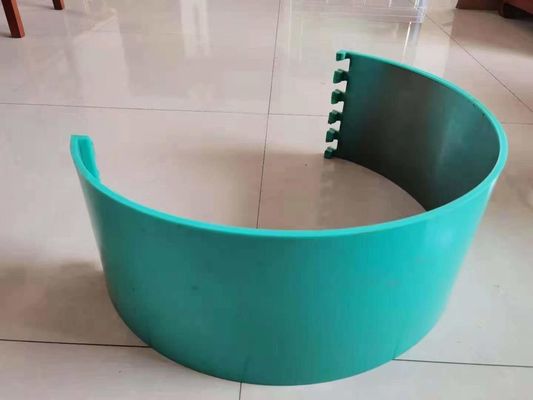

Product Picture Show :
Die Cutting Finshed Product :
