| Brand Name: | Dechang |
| Model Number: | DC-2PT 1.5*1.9 |
| MOQ: | 5 box |
| Price: | Factory Price |
| Packaging Details: | 50pcs/box 10box /Carton |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |
Product Name : High Quality Plastic-based Reverse Bend Creasing Matrix 2PT 1.5*1.9
Material characteristics
Features Of Dechang PVC Reverse Creasing Matrix
1. Dechang is our brand and have competitive price with high quality.
high quality PVC creasing matrix for offset printing machine
Size Table
| 0.3*0.8 | 0.4*1.0 | 0.5*1.0 | 0.6*1.0 | 0.7*2.1 | 0.8*2.5 | 1.0*3.0 |
| 0.3*1.0 | 0.4*1.2 | 0.5*1.2 | 0.6*1.7 | 0.7*2.5 | 0.8*3.0 | 1.0*4.0 |
| 0.3*1.2 | 0.4*1.3 | 0.5*1.3 | 0.6*2.3 | 0.7*3.0 | 0.8*3.5 | 1.0*5.0 |
| 0.3*1.4 | 0.4*1.4 | 0.5*1.5 | 0.6*2.5 | 0.7*3.5 | 0.8*4.0 | 1.0*6.0 |
Method to choose creasing matrix size for cardboard paper.Size table(subjct to 23.8mm die-cutting rules).
How to use Dechang Reverse Bend Creasing matrix size
Use Method Of Creasing Matrix :
1. Measure the length of the creasing rule.
2. Mark the measurement and cut the matrix.
3. Mount the cut piece onto the creasing rule with locator.
4. Remove backing strip to revel adhesive membrane
5. Lock into press&index machine to place matrix on machine to place matrix on opposing platen.
6. Remove locator strip by pulling firmly upwards.
7. Mitre to suitable angle.
Packaging:
70cm/pc,
50pcs/box
10boxes/carton
Carton size: 71 x 20 x 16cm(length x width x height)
Shipping:
(1) By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
(2) By Sea:21~45working days
(3) By Air:3~7working days
(4) By Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .

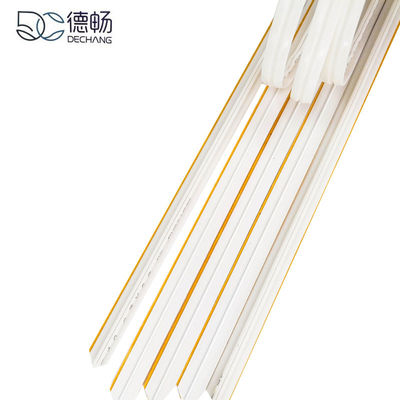

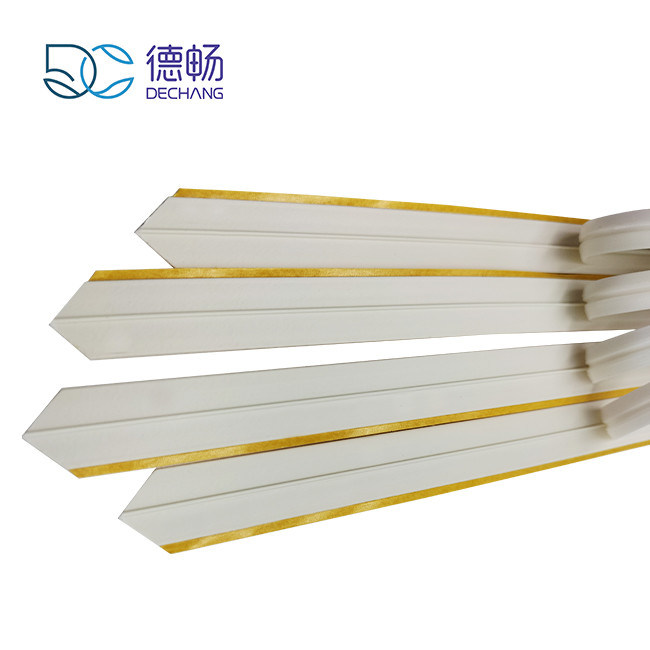

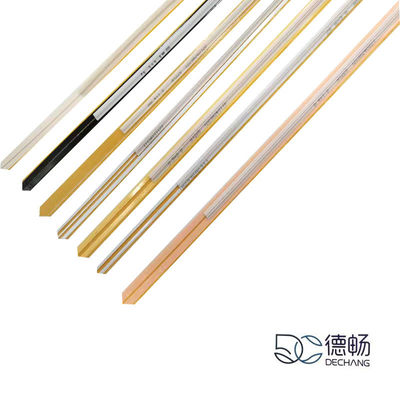

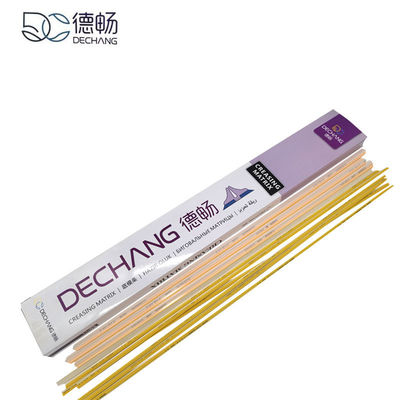

Product Picture :
|
